    Shot Blasting Surface Preparation 3PE/3LPE/FBE Coated Steel Pipe Anti Corrosion Processing Line Automatic

    Ask Lasest Price
    Brand Name : huashida
    Model Number : 001
    Delivery Time : 60-90work days
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Certification : CE, ISO9001:2008, QS, GMP
    Price : dollar +150000-200000+set
    Supply Ability : 5-10 +sets+per mouth
    • Product Details
    • Company Profile

    Shot Blasting Surface Preparation 3PE/3LPE/FBE Coated Steel Pipe Anti Corrosion Processing Line Automatic

    Steel Pipe External Internal 2lpe 3lpe Fbe Liquid Powder Epoxy Coating Line


    Coating Line Description
    Steel Pipe External Internal 2lpe 3lpe Fbe Liquid Powder Epoxy Coating Line is used for anti-corrosion coating steel pipe, which is widely used in varieties of engineering construction, especially in gas and oil industries, and in water transportation.
    The coating line can be applied to FBE coating(epoxy powder), Two-layer extruded polyethylene coating (2LPE), Two-layer polypropylene coating (2LPP) and Three-layer extruded polyethylene coating (3LPE).


    The pipe coating line meets the requirements of producing the steel pipe with coating which meets international standards DIN30670-1991,CAN/ Z245.21-2010,ISO21809-1-2009 SY/T 0413-2002, GB/T23257-2009,GOST 9.602-2016, GOST R 51164-98.

    Steel Pipe External Internal 2lpe 3lpe Fbe Liquid Powder Epoxy Coating Line

    The coating line mainly consists of the following units:
    -steel pipe conveyor system
    -shot/sand blasting system
    -dust collector system
    -pipe induction heating system
    -epoxy powder spraying system
    -PE&Adhesive coating system
    -water cooling system
    -pipe end cutting system
    -hydraulic and pneumatic system
    -testing system
    -electronic control system



    Technological process of 3LPE coating:
    Pipe uploading→Shot blasting→Medium frequency induction heating→Epoxy powder spraying→Adhesive and polyethylene coating→Water cooling→Pipe end cutting back→Bevelling→Pipe unloading

    The line can be customized to fit individual layout and application.

    Steel Pipe External Internal 2lpe 3lpe Fbe Liquid Powder Epoxy Coating Line

    Main Equipment List and specification

    No.NameSpecification
    A. Surface Cleaning Equipment
    1Steel pipe conveyorAdjustable speed and angle, pipe uploading and unloading controlled by PLC
    2Shot blasting machine
    3Cyclone dust collectorHigh efficient downwind cyclone dust removal
    4Impulse cartridge dust collector
    5Centrifugal fan
    6PLC control systemAutomatic control of the line
    B. Coating Equipment
    1Spiral pipe conveyorAdjustable speed and angle
    2Induction heating machine
    3Powder spraying deviceSpraying thickness 80-800μm
    4Automatic feeder&dryer
    5SJ-65/30 Extruder
    6SJ-180/30 Extruder
    7Adhesive extruder die mouldHigh quality die steel
    8PE sheet extruder die moldHigh quality die stee
    9Adhesive/PE sheet coating devicePressing roller with silicon coating and internal cooling
    10Environmental Protection Ventilation equipment
    11Cooling Spray equipment
    C.Platform Equipment
    1Steel pipe platformHigh quality
    D.Groove Equipment
    1PE Beveling MachineSteel brush disk,
    2Hydraulic Lifting and Turning MachineryFor lifting and turning the pipe
    3Hydraulic Equipment

    Equipment show

    Steel Pipe External Internal 2lpe 3lpe Fbe Liquid Powder Epoxy Coating Line
    Steel Pipe External Internal 2lpe 3lpe Fbe Liquid Powder Epoxy Coating Line

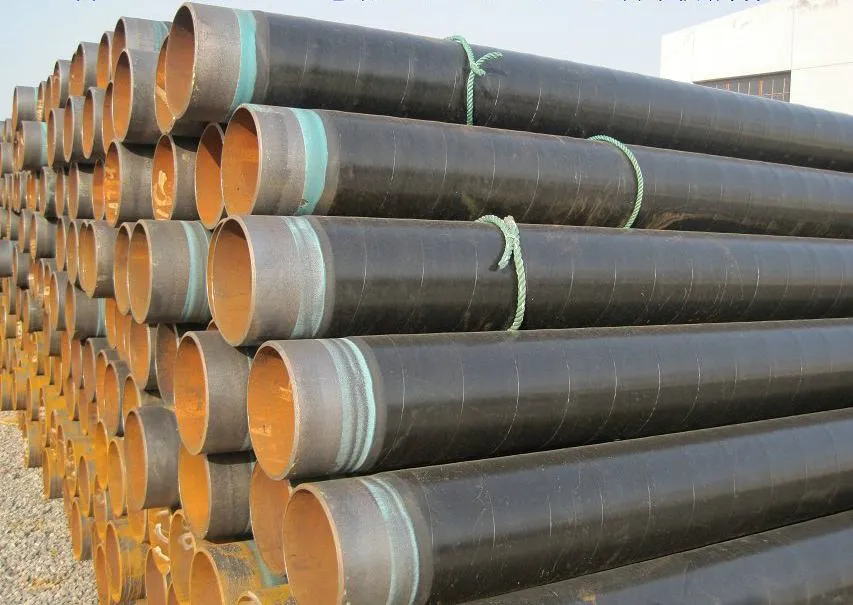

    Pipe usage

    3 layer PE anti-corrosion coating consist of first FBE coating, middle adhesive layer, and outer polyethylene layer.

    Steel Pipe External Internal 2lpe 3lpe Fbe Liquid Powder Epoxy Coating Line
    The three-layer polyethylene anti-corrosion coating is advanced technology as the outer protective layer of buried pipe, widely used in the anti-corrosion of gas and oil transmission pipeline, urban gas supply, water supply pipe, and other fluid transmission pipelines. 3 layer PE anti-corrosion coating can strengthen the pipeline's mechanical properties with high electrical resistance, waterproof, wearable, and anti-aging performance.

    Steel Pipe External Internal 2lpe 3lpe Fbe Liquid Powder Epoxy Coating Line



    Our factory
    Built in 2010, with a construction area of more than 34,000 square meters.
    Steel Pipe External Internal 2lpe 3lpe Fbe Liquid Powder Epoxy Coating Line

    Workshop
    We have own workshops for machining, welding, spraying and assembly.
    Steel Pipe External Internal 2lpe 3lpe Fbe Liquid Powder Epoxy Coating Line

    Customer visiting
    We have received customers from Russia, Ukraine, Belarus, Kazakhstan, Uzbekistan, Iran, India, Brazil, Egypt and other countries to visit the factory for inspection and ordering.
    Steel Pipe External Internal 2lpe 3lpe Fbe Liquid Powder Epoxy Coating Line
    Steel Pipe External Internal 2lpe 3lpe Fbe Liquid Powder Epoxy Coating Line
    Delivery
    We have delivered our equipment to Russia, Kazakhstan, Uzbekistan, Belarus, Iran and other countries.
    Steel Pipe External Internal 2lpe 3lpe Fbe Liquid Powder Epoxy Coating Line

    HUASHIDA at international exhibitions
    Steel Pipe External Internal 2lpe 3lpe Fbe Liquid Powder Epoxy Coating Line
