Bend Pipe Elbow Oil Pipeline 3lpe 3lpp Fbe 3PE Anticorrosion
Coating Machinery
INTRODUCTION
2PE,3PE and FBE Epoxy coated steel pipe is widely used in pipeline
systems for the transmission of oil, gas, water and other fluids.
They have high resistance to corrosive from chemicals, moisture,
harmful environment, etc.
3 layer PE anti-corrosion coating consists of first FBE coating,
middle adhesive layer and outer polyethylene layer.
Bend Pipe 3PE Coating Equipment is used to bend pipe 3PE coating, it consists of bend pipe transportation equipment, bend pipe blasting machine,
bend pipe intermediate frequency heating, bend pipe 3PE coating, bend pipe spraying cooling.
Overall dimension: 20 m X 15 m
Total water consumption: 30 cubic meters
Total power consumption: 450 kilowatts
Total gas consumption: 6 cubic meters/min.
Temperature condition: the temperature inside the workshop is
higher than 5 degrees.
The diameter of steel pipe: 426, 630, 720, 820
Curvature radius: 4-6D
Bending angle: 15-90 degrees.
Steel tube wall thickness: 8 mm -12 mm
Epoxy powder thickness: ≥170 um
AD copolymer adhesive thickness: 170-250 um
PE layer thickness: 2.5 - 3.7 mm
Main Equipment List

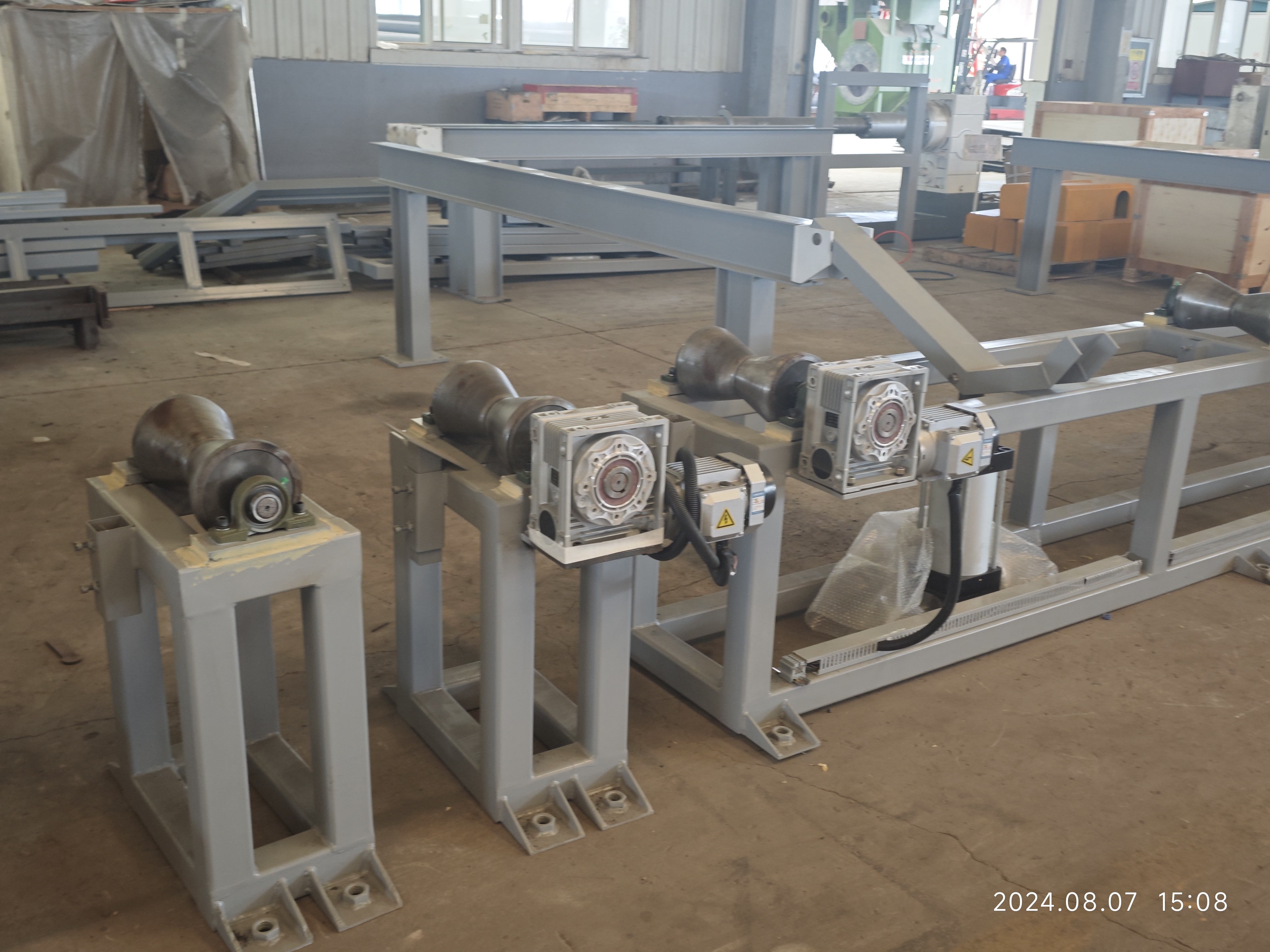

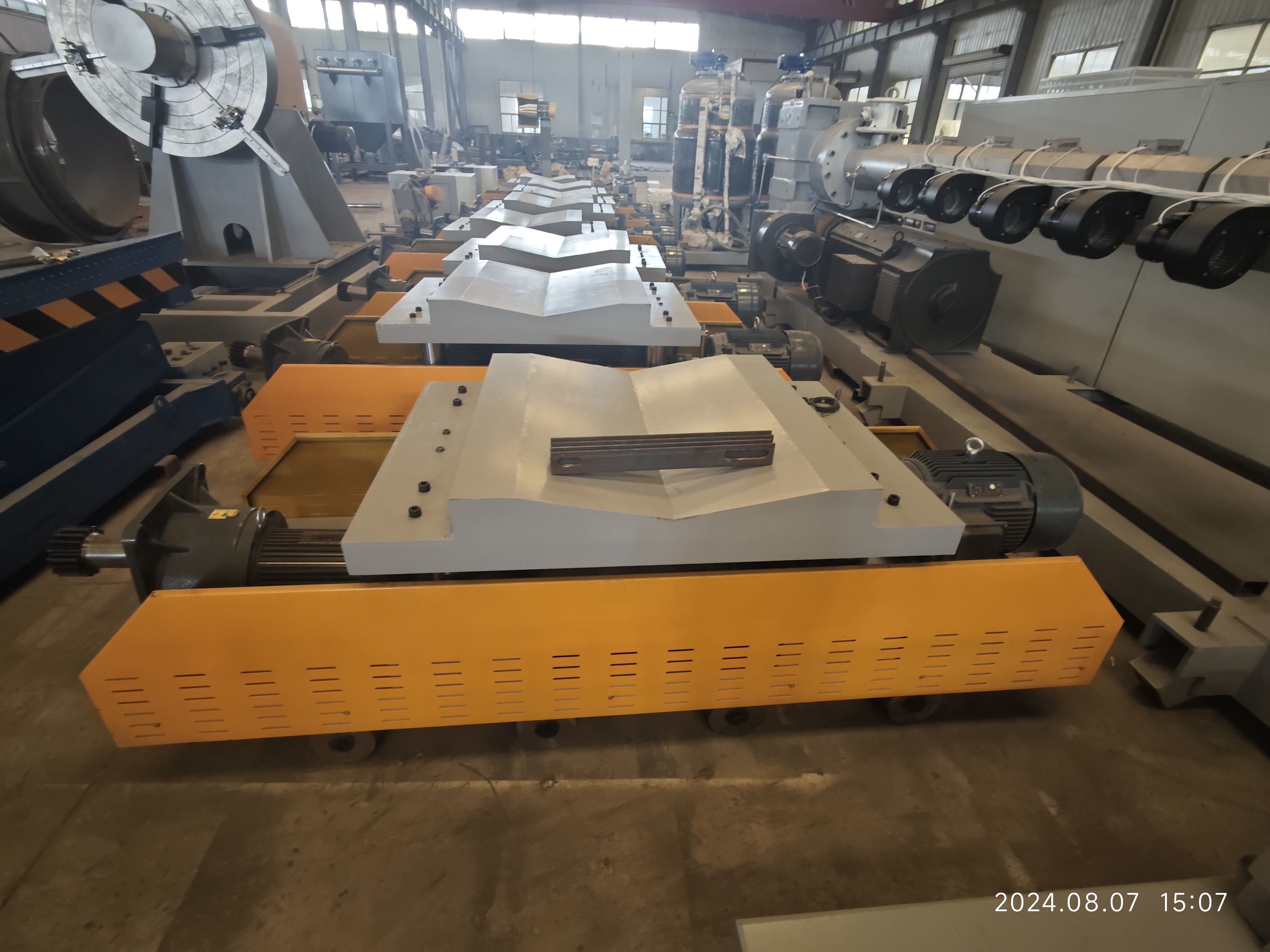

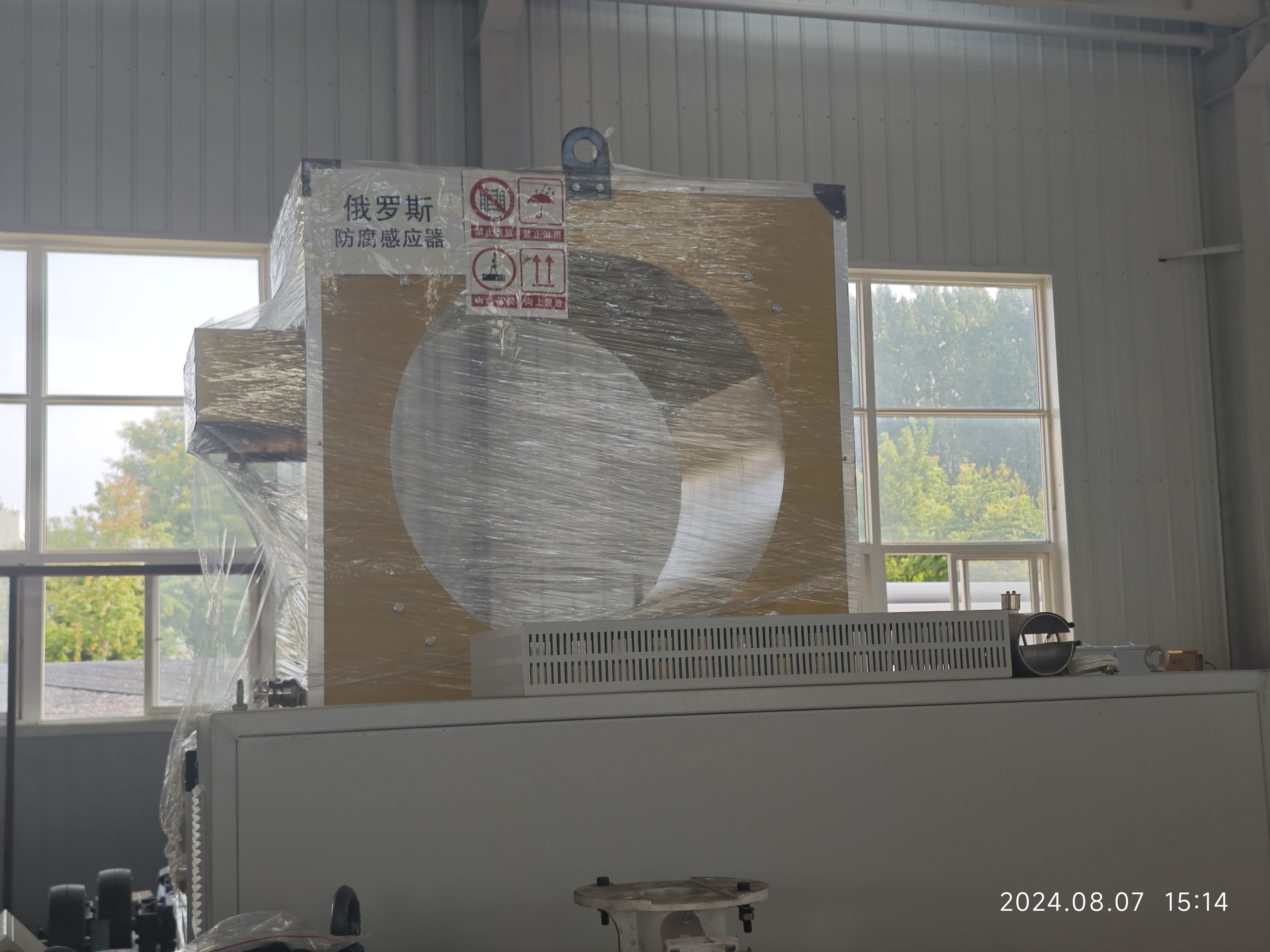

| No. | Name | Set |
| A. Derusting Equipment |
| 1 | Pipe-conveying Equipment | 1 |
| 2 | Shot Blast Cleaning Machine | 1 |
| 3 | Cyclone Dust Collector | 1 |
| 4 | Pulse dust collector | 1 |
| 5 | Centrifugal exhaust fan | 1 |
| 6 | Rust removal equipment PLC | 1 |
| B. Coating equipment |
| 1 | Coating transfer equipment | 1 |
| 2 | IF heating device | 1 |
| 3 | Powder spraying device | 1 |
| 4 | Automatic loading dryer | 2 |
| 5 | SJ-65/30 Extruder | 1 |
| 6 | SJ-180/30 Extruder | 1 |
| 7 | Hot melt adhesive extruder die | 1 |
| 8 | PE sheet extruder head mold | 1 |
| 9 | Hot melt adhesive/PE sheet coating device | 1 |
| 10 | Environmental Protection Ventilation equipment | 1 |
| 11 | Cooling Spray equipment | 1 |
| C.Platform Equipment |
| 1 | Steel pipe platform | 1 |
| 2 | Post-rust removal transition platform | 1 |
| 3 | Product tube storage platform | 1 |
| 4 | Hydraulic Equipment | 3 |
| D.Groove Equipment |
| 1 | PE Beveling Machine | 2 |
| 2 | Hydraulic Lifting and Turning Machinery | 1 |
| 3 | Hydraulic Equipment | 1 |
| 4 | PLC | 1 |
| E.Compressed air Equipment |
| 1 | Screw Air Compressor | 1 |
| 2 | Cold dry machine | 1 |
| 3 | Precision filters | 3 |
| 4 | Gas tanks | 1 |
Question & Answer:
Q1. What is the range of pipe diameter the equipment can produce?
A: Diameter of steel Pipe:
48-219mm,219-1220mm,800-1600mm,1000-2400mm
Q2. What is the sand blasting grade?
A:SA2.5
Q3. What is your anti-corrosion coating standard?
A: It can meet SY/T0413-2002 ,GB/T23257-2009, German DIN 30670 ,
DIN 30678 and coating specification requirements from American
Corrosion Association, and DNV . The product pipe fully complies
with SY/T0315-2005 ,CNPC38-2002 "Technical specifications for
double-layer fusion-bonded epoxy powder coating on buried steel
pipe and Canada, American Corrosion Association standards.
Q4. What is Delivery Time?
A: 2-3monthes after deposit.
Q5. Production output
A: It is different output capability as different pipe diameter,
the Max. is 3 to 8 km/day, and annual processing capacity is 2
million square meters (Φ508 mm).
Q6. Coating thickness:
A: 80~800um
Q7. To which country did you sell your 3PE equipment?
A. We have produced nearly 50sets 3PE processing line at home and
abroad. Such as Russia, Iran, UAE, Iran, India, Belarus, Kazakhstan
and so on.
Q8. After-sales service:
A: Warranty period:
Before delivery all the equipment must be trial operated to confirm
the quantity perfectly.
The warranty period is 12 months from the date of pick-up for
mechanical part , and 6 months for the electrical part.
Service:
The seller provides technical services and provides training and
guidance to buyer operators.
