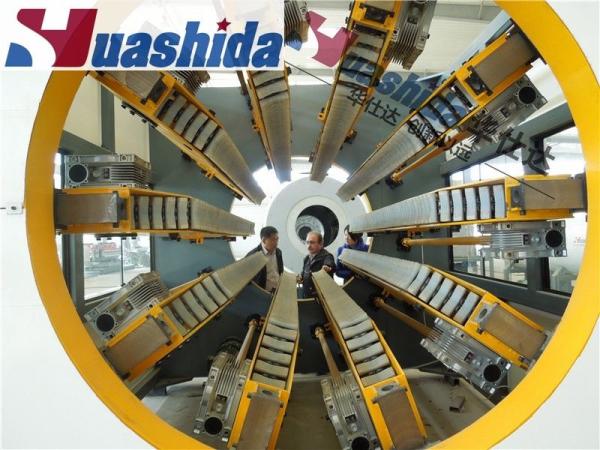

HDPE Gas Supplypipe Extrusion Line/HDPE Water Supply Pipe Production Line Single Screw Extruder

Qingdao Huashida machinery Co., Ltd is a professional plastic extrusion machinery manufacture which was founded in 2003. Equipped with the high efficiency machine designed by us according to latest technology and our innovation

I. Pipe Usage
---HDPE jacket pipe is out case of thermal insulating pipe, which is widely used in central heating, oil, nature gas and other industrial area.

II. Machine Advantages
---High-efficiency extruder gives larger output, stable performance.
For example
SJ90/33---600-700kg/h
SJ120/33---800-900kg/h
SJ150/33---1000-1200kg/h
---Compared with inflating method (internal pressure method)
1. For 24 hours working, it reduces 2-3 workers for each shift.
2. There is much waste pipe and material, no need workers to crush waste material.
3. High-effeciency. Take Dimater 960mm as an example, Output is approximately 60 pcs of 11.6meters pipe, it is much higher output than that of inflating method.
4. Pipe wall is average and smooth, to reduce waste of raw material, and pipe thickness is adjustable.
5. No need trim edge, once forming.

III. Main machine- High-effeciency single screw extruder
---Single screw is with barreir & mixing head; Barrel is new model with slotting (channel), Both make security of good jellification, large output and stable performance.

IV. Controlling system
The complete line could be controlled by PLC, with good human-machine interface, all technical parameters could be set and indicated by touching screen. Controlling system is designed according to the customer; S requirement, to be with PLC, or without.

V. Electrical system
---ABB frequency converter or EUROTHERM speed controller
---Japan RKC temperature controller
--- SIEMENS AC contactors

1. Our Factory

Qingdao Huashida Machinery Co., Ltd. is located in Qingdao High & New Technology Industrial Area- Qingdao Huashida industrial Park, covers an area of about 4000 square meters. We have tens of years experience in plastic pipe, sheet, and board extrusion lines, and pipe joints and welding tools such as heat shrinkable sleeve, Electro fusion sleeve etc.

2. Our main products

Our main products include as following,

HDPE PU pre-insulation Jacket Pipe extrusion line

3PE steel pipe anticorrosion&coating machinery

Rubber&plastic foam flexible insulation tube/sheet production line

HDPE water supplying pipe extrusion line

PE PP sheet board extrusion line

Heat shrinkable sleeve production line

Hollow wall spiral pipe production line

Plastic welding rod extrusion line

Radiation cross-linked PE heat shrinkable sleeve

Electro fusion tape

Portable extrusion welder

3. Our products Application.

Our machines make products what are widely used as jacket pipe of PU foam insulation pipe in municipal heating pipe system; Municipal water supplying and drainage pipeline; Oil and gas pipeline; Pipe joints of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;

Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;

4. Our certificates and Patents

5. Our Purpose and Market

Our purpose is to supply highest cost-effective products and the most suitable solutions to our clients, as well as intimate help and service, on this basis we reach a win-win situation.

For over 14years We have exported to many foreign countries, such as Russia, Iran, Turkey, U. A. E, Sudan, Ukraine, Uzbekistan, Azerbaijan, South Asia, Poland etc.

6. Guarantee and after service

The guarantee period is 12 months from the date of installing, but no more than 14 months from the date of delivery. After this period we are obliged to provide with lifelong service at the expense of Buyer.

During the warranty period we are responsible to provide trouble shootings and help the customer to solve the problems, provide spare parts which are broken, except breakings caused by the Buyer.

We will provide the technical service train the workers from the buyers for free.

We can also send technicians to the buyer's companies abroad for help installation and testing the lines. But the buyer shall pay for the round trip tickets, accommodation, transportation, medicine treatment and insurance of the technicians in foreign countries and some salary accordingly.
