Skrg3000 HDPE Large Diameter Heavy Caliber Extruding Hollow Wall Winding Making Plastic Pipe Machinery

SKRG1200 HDPE Spiral Pipe Machine
---Pipe diameter range: 300-1200mm

It has been widely used for sewerage and drainage in city, it will replace the cement pipe, cast iron pipe and other pipes. Its low cost of assembling, easy operation, easy connection and economical construction can make it wide foreground and market potential.

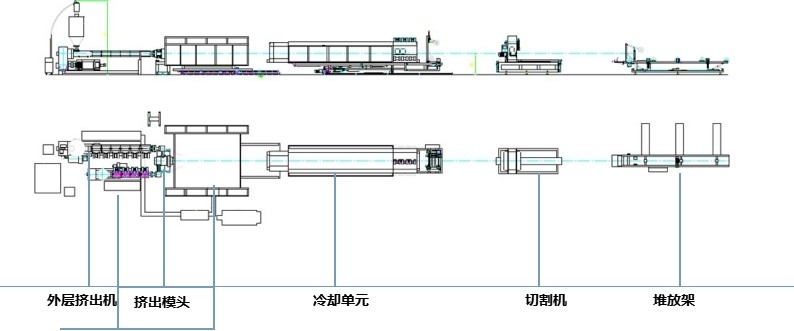

---The production line comprises two main parts, PE pipe extrusion line & Spiral forming line.
1. PE pipe extrusion line includes equipments and devices as below,
1set Vacuum loader
1set Hopper dryer
1set High-effeciency single screw extruder and diehead mould
1set Vacuum calibration table
1set Water spraying tank
1set Hauling machine


2. Winding forming line includes equipments and devices as below,
1set High-efficiency single screw extruder and diehead
1set Spiral forming unit
1set Cutting machine,
1set Stacker
1set PLC controlling system


Features of large caliber PE spiral drainage pipe:
1). High Ring Stiffness
2). High Brunt Intensity and low weight
3). Good creep deformation resistance.
4). Outer pressure resistance.
5). Erosion resistance ( such as acid, alkali and salt etc. )
6). Long life of approximate 50 years. No pollution and so on.

Features of Production Line:
1. Large caliber spiral drainage Pipe Production Line is designed with advanced technology includes 1st single screw extruder for square shaped pipe, square shaped pipe extrusion die, vacuum calibration water tank, spray cooling water tank, 2nd single screw extruder for melting glue material, spiral forming unit, cutting unit and stack unit.
2.1st single screw extruder for square shaped pipe and 2nd single screw extruder for melting glue material: Extrusion theory for low energy consumption and low temperature plastication compliant with material characteristic (heavier molecular weight), Unique screw design of distance-changing and separation of solid material and melting material, Unique design of loading system ensures large increasing of extrusion capacity. Special design of high mix-melting ensures through low temperature plastication.

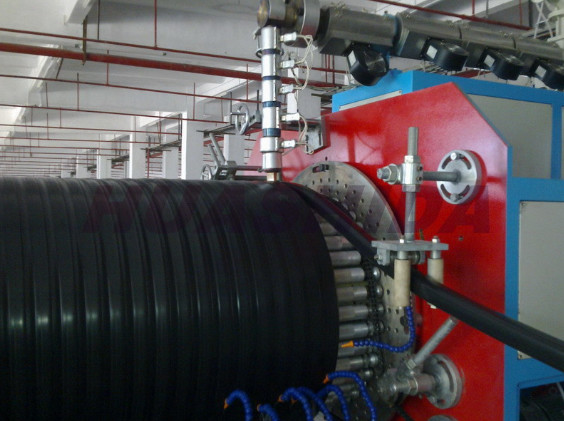

3. Spiral forming unit: Adopts advanced multi-axes transmission box with feature of high transmission force and stable running performance. Unique design of composite die-head, rotational molding after combined feed, and two sets of extruder extrude PE for winding pipe, High quality of winding pipe produced by adopting the unique winding process for pipe forming, The glue extruder can be moved in up and down, left and right direction. PLC computer control system with touch screen interface can realize automatic and reliable operation
4. Cutting part: Saw cutting with desired length. OMRON or MITSUBISHI PLC computer control system with touch screen interface can realize automatic and reliable operation.
5. PLC computer control system with touch screen: With super high speed and large storage capacity, Multi control points: Forming pipe extrusion, melting PE adhesive extrusion, winding and cutting process can be auto-tail controlled synchronously, Separately controlling two extruder and winding unit in tandem with two touch screens.

Extruder
Efficient single screw extruder with water-cooling force feeding system, and barrel with grooving in the feeding zone are designed to save power of main motor; Long L/D ratio and mixing head are designed to get perfect jellification and high output.


Warranty period:

The mechanical part is guaranteed for 12 months and the electrical part is guaranteed for 6 months from the date of shipment.

Service:

The seller provides technical support and related electrical drawings for the buyer free of charge, and trains the buyer’s operators.

Installation and commissioning of equipment:

The seller will send enough technicians to the buyer to install and debug the equipment. The cost of round-trip air tickets, boarding and lodging, transportation, medical treatment, insurance, etc. of the seller’s experts and 100 USD per person per day shall be borne by the buyer.

Product parameter:

Huashida Machinery, with over 14 years' experience, is one of the professional hdpe hollow structure wall spiral and rewinding pipe production machine line manufacturers in China. Offering the customized service, we warmly welcome you to get the high qualified products from our factory.

you can go to website: hsdextruder.en.made-in-china.com for more informaiton or email for more information.

1. Our Factory

Qingdao Huashida Machinery Co., Ltd. is located in Qingdao High & New Technology Industrial Area- Qingdao Huashida industrial Park, covers an area of about 4000 square meters. We have tens of years experience in plastic pipe, sheet, and board extrusion lines, and pipe joints and welding tools such as heat shrinkable sleeve, Electro fusion sleeve etc.

2. Our main products

Our main products include as following,

HDPE PU pre-insulation Jacket Pipe extrusion line

3PE steel pipe anticorrosion&coating machinery

Rubber&plastic foam flexible insulation tube/sheet production line

HDPE water supplying pipe extrusion line

PE PP sheet board extrusion line

Heat shrinkable sleeve production line

Hollow wall spiral pipe production line

Plastic welding rod extrusion line

Radiation cross-linked PE heat shrinkable sleeve

Electro fusion tape

Portable extrusion welder

3. Our products Application.

Our machines make products what are widely used as jacket pipe of PU foam insulation pipe in municipal heating pipe system; Municipal water supplying and drainage pipeline; Oil and gas pipeline; Pipe joints of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;

Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;

4. Our certificates and Patents

5. Our Purpose and Market

Our purpose is to supply highest cost-effective products and the most suitable solutions to our clients, as well as intimate help and service, on this basis we reach a win-win situation.

For over 14years We have exported to many foreign countries, such as Russia, Iran, Turkey, U. A. E, Sudan, Ukraine, Uzbekistan, Azerbaijan, South Asia, Poland etc.

6. Guarantee and after service

The guarantee period is 12 months from the date of installing, but no more than 14 months from the date of delivery. After this period we are obliged to provide with lifelong service at the expense of Buyer.

During the warranty period we are responsible to provide trouble shootings and help the customer to solve the problems, provide spare parts which are broken, except breakings caused by the Buyer.

We will provide the technical service train the workers from the buyers for free.

We can also send technicians to the buyer's companies abroad for help installation and testing the lines. But the buyer shall pay for the round trip tickets, accommodation, transportation, medicine treatment and insurance of the technicians in foreign countries and some salary accordingly.
