Preinsulated Pipe Making Machine for PU Spraying PE Film Wrapping 2-Step Method

Product description
The polyurethane sprayed polyethylene thermal winding insulation pipe production line independently developed by Huashida, consists of three parts: External shot blasting and derusting production line, polyurethane spraying production line, and PE winding production line. The line has a number of national patents, and the third-party standardized evaluation report has a technology advanced level of 5, reaching the domestic leading level. And won the first set of technical equipment in Shandong Province.
The line adopts continuous spraying production process. High automatic, fast production efficiency, saving raw materials, increased foaming and closed cell rate, lower water absorption rate, trinity molding, and more reliable performance. Products with low carbon environmental protection have higher economic and social benefits.

Rigid polyurethane spraying polyethylene winding prefabricated directly buried insulation pipe consists of steel working pipe, spraying polyurethane rigid foam insulation layer and winding polyethylene outer protective pipe. See the following figure for product structure

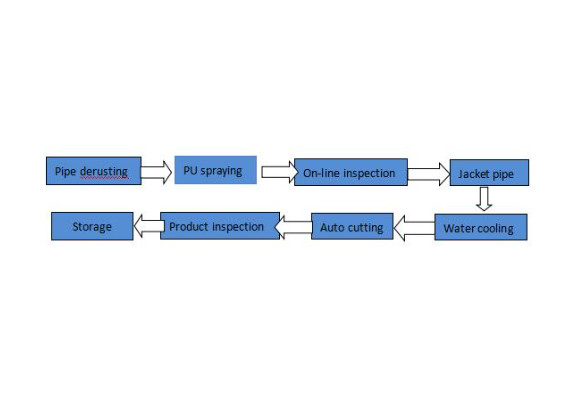

Technological flow:


Composition of the polyurethane coating steel preinsulated pipe equipment:
1. Shot blasting rust removel machine
2. Medium-frequency induction heating furnace
3. Polyurethane spraying unit
4. Single screw extruder and diehead mould
5. Finished pipe ends trimming machine
6. Conveyers, racks and robotics to move and handle the pipe
7. Electrical system and PLC

Advantages of Huashida stand

The steel pipe stand can be installed within an error range of ± 80mm of the user's ground foundation. The height of the stand is adjusted by anchor mounting bolts. When installing the stand, a slope of 5 ‰ is reserved, making it easy to roll large pipe diameters. Reduce labor intensity. After the installation of the platform frame, the foundation of the platform frame shall undergo secondary grouting treatment, with a neat and generous appearance

Main accessories

Company profile

Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3PE anti-corrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development,

collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. by absorbing advanced technology home and abroad, after 20 years of endeavor we now rank one of the top 3 manufacturers in the industry in China. Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.

1. Our Factory

Qingdao Huashida Machinery Co., Ltd. is located in Qingdao High & New Technology Industrial Area- Qingdao Huashida industrial Park, covers an area of about 4000 square meters. We have tens of years experience in plastic pipe, sheet, and board extrusion lines, and pipe joints and welding tools such as heat shrinkable sleeve, Electro fusion sleeve etc.

2. Our main products

Our main products include as following,

HDPE PU pre-insulation Jacket Pipe extrusion line

3PE steel pipe anticorrosion&coating machinery

Rubber&plastic foam flexible insulation tube/sheet production line

HDPE water supplying pipe extrusion line

PE PP sheet board extrusion line

Heat shrinkable sleeve production line

Hollow wall spiral pipe production line

Plastic welding rod extrusion line

Radiation cross-linked PE heat shrinkable sleeve

Electro fusion tape

Portable extrusion welder

3. Our products Application.

Our machines make products what are widely used as jacket pipe of PU foam insulation pipe in municipal heating pipe system; Municipal water supplying and drainage pipeline; Oil and gas pipeline; Pipe joints of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;

Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;

4. Our certificates and Patents

5. Our Purpose and Market

Our purpose is to supply highest cost-effective products and the most suitable solutions to our clients, as well as intimate help and service, on this basis we reach a win-win situation.

For over 14years We have exported to many foreign countries, such as Russia, Iran, Turkey, U. A. E, Sudan, Ukraine, Uzbekistan, Azerbaijan, South Asia, Poland etc.

6. Guarantee and after service

The guarantee period is 12 months from the date of installing, but no more than 14 months from the date of delivery. After this period we are obliged to provide with lifelong service at the expense of Buyer.

During the warranty period we are responsible to provide trouble shootings and help the customer to solve the problems, provide spare parts which are broken, except breakings caused by the Buyer.

We will provide the technical service train the workers from the buyers for free.

We can also send technicians to the buyer's companies abroad for help installation and testing the lines. But the buyer shall pay for the round trip tickets, accommodation, transportation, medicine treatment and insurance of the technicians in foreign countries and some salary accordingly.
