    Polyurethane Spraying Polyethylene Winding Prefabricated Direct Buried Insulated Pipe Making Machine

    Ask Lasest Price
    Brand Name : HUASHIDA
    Certification : ISO9001
    Payment Terms : L/C, D/A, D/P, Western Union, T/T, MoneyGram
    Delivery Time : come to an agreement in respect of the delivery time
    • Product Details
    • Company Profile

    Polyurethane Spraying Polyethylene Winding Prefabricated Direct Buried Insulated Pipe Making Machine

    Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine
    1. Technical parameter

    No.

    Steel pipe dia.

    (DN)


    Foaming thickness(mm)

    PE casing dia.

    Min. PE thickness

    1


    500


    30-60


    598-658


    4.5


    2


    600


    30-60


    700-760


    5.0


    3


    700


    30-60


    790-850


    5.0


    4


    800


    30-60


    891-951


    5.5


    5


    900


    30-60


    992-1052


    6.0


    6


    1000


    30-60


    1093-1153


    6.5


    7


    1100


    30-60


    1194-1254


    7.0


    8


    1200


    40-100


    1316-1436


    8.0


    9


    1400


    50-100


    1538-1678


    9.0


    10


    1620


    50-100


    1738-1840


    10.0


    2. Technological flow:
    Steel pipe Load-up online---->External shot blasting ----> dust collector---->internal blow out---->lifting transport pipe trolley---->transport to chuck----> chuck hoist cylinder----> alignment chuck center---->mechanical arm station adjust---->chuck hydraulic clamping---->chuck guard at both ends----> carrier pipe servo transport---->IF heating----> PU foam spraying----> pipe load down line----> transport pipe ----> PE film wrapping----> water cooling---->cutting down pipeline---->trim end of pipe---->printing mark&loading down finished pipe---->sealing end of pipe
    Polyurethane Spraying Polyethylene Winding Prefabricated Direct Buried Insulated Pipe Making Machine
    3.Advantages of Huashida stand
    The steel pipe stand can be installed within an error range of ± 80mm of the user's ground foundation. The height of the stand is adjusted by anchor mounting bolts. When installing the stand, a slope of 5 ‰ is reserved, making it easy to roll large pipe diameters. Reduce labor intensity. After the installation of the platform frame, the foundation of the platform frame shall undergo secondary grouting treatment, with a neat and generous appearance
    Polyurethane Spraying Polyethylene Winding Prefabricated Direct Buried Insulated Pipe Making Machine

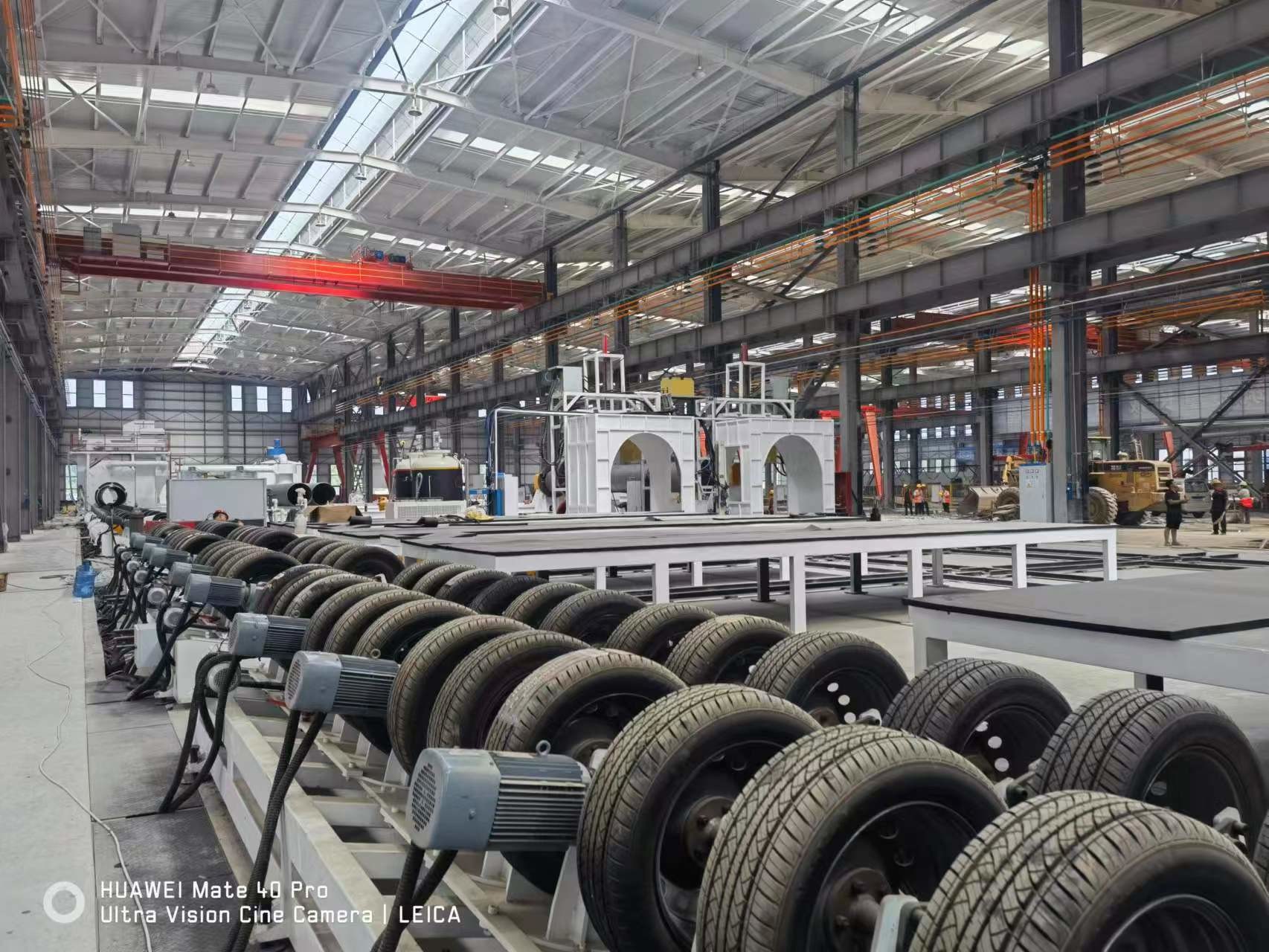

    4. Advantages of Qingdao Huashida brand steel pipe conveying system
    Unified adjustment of opening and closing, and unified adjustment of angle.
    The separate power drive of each group of wheels expands the spiral angle of the conveyor, with a transmission angle of up to 30 degrees. The transmission speed is adjustable from 0 to 6 meters per min.
    Solid core wide face tires are used, with a bearing capacity of 2.5 tons for a single wheel. They are press fit tires, without degumming and cracking. The thickness of the adhesive layer is greater than 85mm, and the transmission is stable and reliable, providing a safety guarantee for the long-term operation of the equipment.
    Polyurethane Spraying Polyethylene Winding Prefabricated Direct Buried Insulated Pipe Making Machine
    5. Company profile

    Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3PE anti-corrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development,
    collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. by absorbing advanced technology home and abroad, after 20 years of endeavor we now rank one of the top 3 manufacturers in the industry in China. Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.
