PE Electrofusion Sleeve and Electro Melt Band Making Machine Line

PE Electro Fusion Welding Sleeve:
It is a kind of connecting pipe fitting what is widely used on anti-corrosion, especially on Directly buried pre-insulated pipes field joint. It is made by Polyethylene sheets complex with the electro-fusion wire



INTRODUCTION

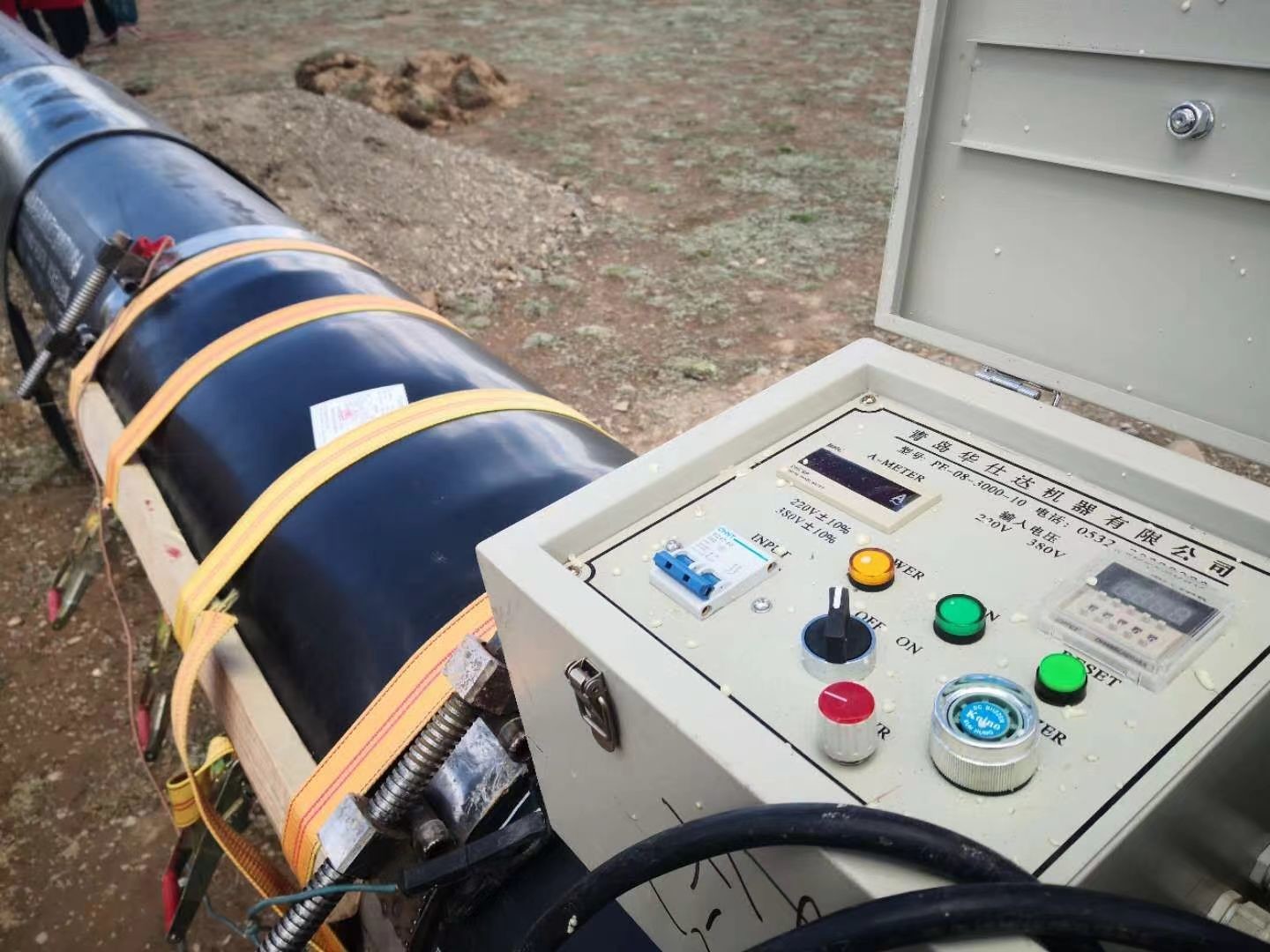

Electrofusion weldable joint is a pre-cut high-quality HDPE sheet embedded with nicochrome net. It is used as polymer pipe welding materials or fittings, which is installed by a special electric heating welder.
The tape size can be customized. It can be used for a big range of pipe diameter from 200mm.



Application:
1. District thermal heating system construction
2. Pre-insulated pipes field joint welding and oil pipes joint welding;
3. Hollow wall spiral pipe joint fitting
4.Structure pipe joint fitting
5. Steel reinforced spiral pipe joint fitting

Performance:

1. Waterproof; High adhesion, good airtightness, corrosion resistant capacity, long service life and convenient operation
2. Able to withstand axial forces initiated by axial movements of the pipe in the ground;
3. Able to withstand radial forces and bending moments;
4. Able to withstand effects of temperature and temperature variations.
5. Have the same thickness of the line pipe insulation layer.

Size and deviation of the electrofusion mesh

Resistivity of electrofusion mesh should comply with the following standard

Resistivity of electrofusion mesh

Test report

Final Test	Unit	Standard	Test Result	Assess
HDPE Raw material density	g/cm 3	≥0.935	0.961	OK
Raw material melt flow rate	g/10min	≤0.50	0.46	OK
Appearance check	/	Internal and external surfaces are clean and free from other defects.	OK	OK
Heat reversion	%	≤3; shall not show any cracks	0.89, No cracks	OK
Tensile yield strength	Mpa	≥19	20.2	OK
Elongation at break	%	≥350	656	OK
Stress crack resistance	h	≥300	OK	OK

1. Our Factory

Qingdao Huashida Machinery Co., Ltd. is located in Qingdao High & New Technology Industrial Area- Qingdao Huashida industrial Park, covers an area of about 4000 square meters. We have tens of years experience in plastic pipe, sheet, and board extrusion lines, and pipe joints and welding tools such as heat shrinkable sleeve, Electro fusion sleeve etc.

2. Our main products

Our main products include as following,

HDPE PU pre-insulation Jacket Pipe extrusion line

3PE steel pipe anticorrosion&coating machinery

Rubber&plastic foam flexible insulation tube/sheet production line

HDPE water supplying pipe extrusion line

PE PP sheet board extrusion line

Heat shrinkable sleeve production line

Hollow wall spiral pipe production line

Plastic welding rod extrusion line

Radiation cross-linked PE heat shrinkable sleeve

Electro fusion tape

Portable extrusion welder

3. Our products Application.

Our machines make products what are widely used as jacket pipe of PU foam insulation pipe in municipal heating pipe system; Municipal water supplying and drainage pipeline; Oil and gas pipeline; Pipe joints of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;

Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;

4. Our certificates and Patents

5. Our Purpose and Market

Our purpose is to supply highest cost-effective products and the most suitable solutions to our clients, as well as intimate help and service, on this basis we reach a win-win situation.

For over 14years We have exported to many foreign countries, such as Russia, Iran, Turkey, U. A. E, Sudan, Ukraine, Uzbekistan, Azerbaijan, South Asia, Poland etc.

6. Guarantee and after service

The guarantee period is 12 months from the date of installing, but no more than 14 months from the date of delivery. After this period we are obliged to provide with lifelong service at the expense of Buyer.

During the warranty period we are responsible to provide trouble shootings and help the customer to solve the problems, provide spare parts which are broken, except breakings caused by the Buyer.

We will provide the technical service train the workers from the buyers for free.

We can also send technicians to the buyer's companies abroad for help installation and testing the lines. But the buyer shall pay for the round trip tickets, accommodation, transportation, medicine treatment and insurance of the technicians in foreign countries and some salary accordingly.
