    Steel Pipe External 3lpe Internal FBE Anticorrosion Coating line for Water Supply & Draiange Pipe

    Ask Lasest Price
    Brand Name : Huashida
    Model Number : 159-4200mm
    Certification : ISO/CE/RoHS
    Price : $US100000-3000000
    Delivery Time : 60 Days
    Payment Terms : T/T,L/C,Western Union
    Supply Ability : 30 Sets/year
    • Product Details
    • Company Profile

    Steel Pipe External 3lpe Internal FBE Anticorrosion Coating line for Water Supply & Draiange Pipe

    Product Description:

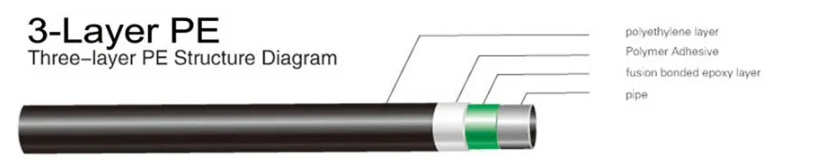

    The steel pipe is treated with external 3PE anti-corrosion (bottom layer epoxy powder + middle adhesive + outer layer polyethylene) and internal epoxy coating spraying, which combines strong adhesion, chemical corrosion resistance and mechanical protection performance. It is widely used in oil and gas transportation, water supply and drainage and other pipeline fields, effectively extending the service life.
    The lines can be applied to FBE, 2 layer FBE, 2 layer PE, 2 layer PP and 3 layer PE anti-corrosion coating.


    Technical process
    Upload pipes→pipes screw conveyor→inernal rust removal →external rust removal→ intermediate frequency heating→Internal Epoxy powder coating→External Epoxy powder coating→ outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→dowload pipes

    Features:

    Steel pipe coverage range: 114mm-4200mm
    Processing capacity: ≤250㎡/h
    Cleaning grade: Sa2.5 level
    Coating Materials: Polyethylene, Adhesive, Epoxy
    Heating Method: Induction Heating
    Cooling Method: Water Cooling
    Extruder: Single Screw Extruder
    Coating Type: Internal, External


    Advantages

    -Adopt advanced technology
    -Stable operation
    -High degree of automation, saving labor costs
    -Excellent anti-corrosion properties, compliant with international standards
    -Supply full completed production solution: design, installation, commissioning,training
    -Share you 389 sets of production experience from all the world
    -Having 9 professional senior engineers
    -Having a high-end plastic machinery equipment expert workstation in China

    Main Equipment List

    No.NameSet
    A. Derusting Equipment
    1Pipe wheel conveyor1
    2Internal External Shot Blasting Machine1
    3Cyclone Dust Collector1
    4Pulse dust collector1
    5Centrifugal exhaust fan1
    6Rust removal equipment PLC1
    B. Coating equipment
    1Pipe wheel conveyor1
    2Induction heating device1
    3Powder spraying device1
    4Automatic loading dryer2
    5SJ-65/30 Extruder1
    6SJ-120/30 Extruder1
    7Hot melt adhesive extruder die1
    8PE sheet extruder head mold1
    9Hot melt adhesive/PE sheet coating device1
    10Environmental Protection Ventilation equipment1
    11Cooling Spray equipment1
    C.Platform Equipment
    1Steel pipe uploading platform1
    2Downloading platform1
    3Pipe storage platform1
    4Turnover machanism3
    D.Groove Equipment
    1PE Beveling Machine2
    2Hydraulic Lifting and Turning Machinery1
    3Hydraulic Equipment1
    4PLC automatic control system1


    Delivery
    Tpep Steel Pipe Internal Fbe External 3lpe Anti-Corrosion Coating Line

    Exhibition
    Tpep Steel Pipe Internal Fbe External 3lpe Anti-Corrosion Coating Line
    Certifications
    Tpep Steel Pipe Internal Fbe External 3lpe Anti-Corrosion Coating LineTpep Steel Pipe Internal Fbe External 3lpe Anti-Corrosion Coating Line
