3PE Anti-Corrrosive Steel Pipe Making Machine with Sand Blasting and Rust Removal

It is an efficient method to make the epoxy powder of inside and outside the steel pipe for anti-corrosion. The anti corrosive steel pipe has many advantages, such as strong corrosion resistance of the coating, which can resist the erosion of a variety of chemical mediator; The coating surface is smooth and the friction resistance is small. This steel pipe of anti corrosion is widely used in petroleum, natural gastransmission pipelines, water supply and drainage pipelines and many other fields.

The coating line mainly consists of the following units:
-steel pipe conveyor system
-shot/sand blasting system
-dust collector system
-pipe induction heating system
-epoxy powder spraying system
-PE&Adhesive coating system
-water cooling system
-pipe end cutting system
-hydraulic and pneumatic system
-testing system
-electronic control system


Technological process of 3LPE coating:
Pipe uploading→Shot blasting→Medium frequency induction heating→Epoxy powder spraying→Adhesive and polyethylene coating→Water cooling→Pipe end cutting back→Bevelling→Pipe unloading

The line can be customized to fit individual layout and application.


Main Equipment List and specification

Pipe usage

3 layer PE anti-corrosion coating consist of first FBE coating, middle adhesive layer, and outer polyethylene layer.


The three-layer polyethylene anti-corrosion coating is advanced technology as the outer protective layer of buried pipe, widely used in the anti-corrosion of gas and oil transmission pipeline, urban gas supply, water supply pipe, and other fluid transmission pipelines. 3 layer PE anti-corrosion coating can strengthen the pipeline's mechanical properties with high electrical resistance, waterproof, wearable, and anti-aging performance.

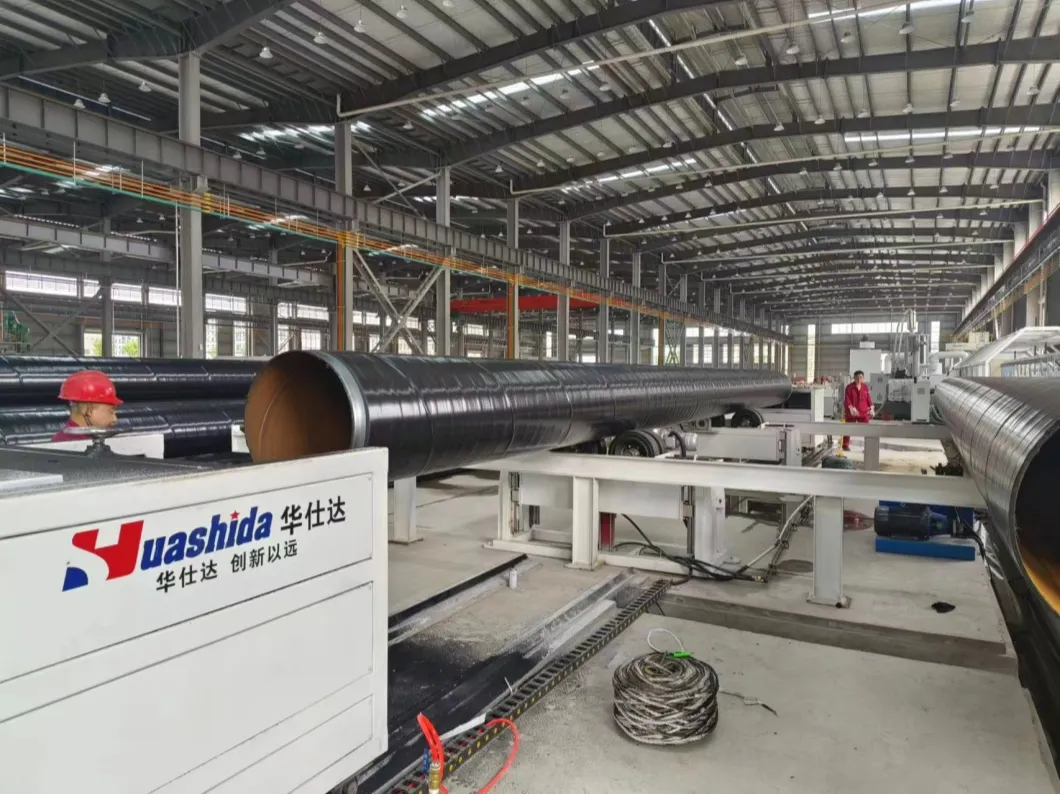

Workshop
We have own workshops for machining, welding, spraying and assembly.

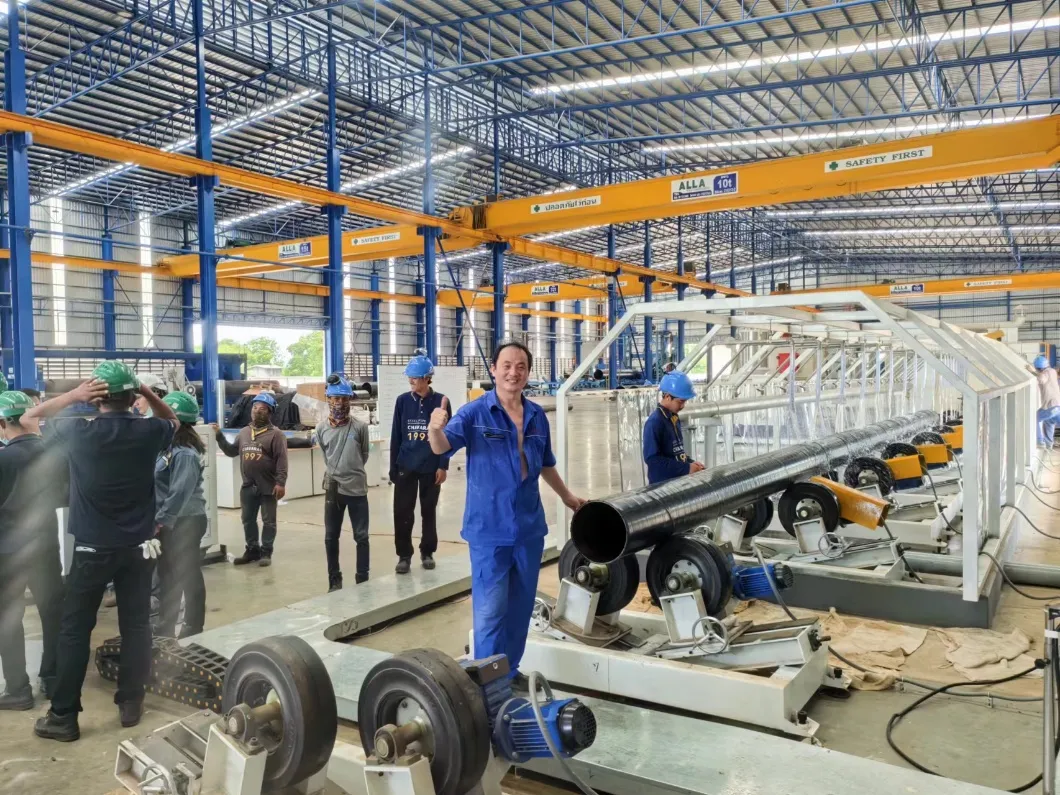

Customer visiting
We have received customers from Russia, Ukraine, Belarus, Kazakhstan, Uzbekistan, Iran, India, Brazil, Egypt and other countries to visit the factory for inspection and ordering.


Delivery
We have delivered our equipment to Russia, Kazakhstan, Uzbekistan, Belarus, Iran and other countries.


HUASHIDA at international exhibitions

1. Our Factory

Qingdao Huashida Machinery Co., Ltd. is located in Qingdao High & New Technology Industrial Area- Qingdao Huashida industrial Park, covers an area of about 4000 square meters. We have tens of years experience in plastic pipe, sheet, and board extrusion lines, and pipe joints and welding tools such as heat shrinkable sleeve, Electro fusion sleeve etc.

2. Our main products

Our main products include as following,

HDPE PU pre-insulation Jacket Pipe extrusion line

3PE steel pipe anticorrosion&coating machinery

Rubber&plastic foam flexible insulation tube/sheet production line

HDPE water supplying pipe extrusion line

PE PP sheet board extrusion line

Heat shrinkable sleeve production line

Hollow wall spiral pipe production line

Plastic welding rod extrusion line

Radiation cross-linked PE heat shrinkable sleeve

Electro fusion tape

Portable extrusion welder

3. Our products Application.

Our machines make products what are widely used as jacket pipe of PU foam insulation pipe in municipal heating pipe system; Municipal water supplying and drainage pipeline; Oil and gas pipeline; Pipe joints of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;

Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;

4. Our certificates and Patents

5. Our Purpose and Market

Our purpose is to supply highest cost-effective products and the most suitable solutions to our clients, as well as intimate help and service, on this basis we reach a win-win situation.

For over 14years We have exported to many foreign countries, such as Russia, Iran, Turkey, U. A. E, Sudan, Ukraine, Uzbekistan, Azerbaijan, South Asia, Poland etc.

6. Guarantee and after service

The guarantee period is 12 months from the date of installing, but no more than 14 months from the date of delivery. After this period we are obliged to provide with lifelong service at the expense of Buyer.

During the warranty period we are responsible to provide trouble shootings and help the customer to solve the problems, provide spare parts which are broken, except breakings caused by the Buyer.

We will provide the technical service train the workers from the buyers for free.

We can also send technicians to the buyer's companies abroad for help installation and testing the lines. But the buyer shall pay for the round trip tickets, accommodation, transportation, medicine treatment and insurance of the technicians in foreign countries and some salary accordingly.
