    High Automation PE 960-1860 Pre-Insulated Pipe Extrusion Production Line

    Ask Lasest Price
    Brand Name : Huashida
    Certification : CE, ISO9001:2008
    Price : 200000-1000000$
    Delivery Time : 60 Days
    Payment Terms : T/T, L/C,Western Union,MoneyGram
    Supply Ability : 30 Sets/Year
    Model Number : 960-1860
    • Product Details
    • Company Profile

    High Automation PE 960-1860 Pre-Insulated Pipe Extrusion Production Line

    High Automation PE960-1860 Pre-Insulated Pipe Extrusion Production Line

    Product Description

    The vacuum calibration polyurethane insulation pipe is a highly efficient pre - insulated pipe. It is constructed with a working steel pipe at the innermost layer, which is responsible for transporting media like hot water and steam. The middle PU insulation layer offers excellent heat preservation, effectively minimizing heat loss. The outermost plastic outer protective tube, typically made of high - density PE, safeguards the insulation layer from external environmental damage and gives the pipe a sleek appearance.


    High Automation PE 960-1860 Pre-Insulated Pipe Extrusion Production Line


    Product Parameters

    StylePE-110/500PE-655/1380PE-960/1860PE-1155/2200
    Main ExtruderSJ-75/33SJ-120/33SJ-150/33SJ-150/33
    Pipe diameterΦ110-600mmΦ655-1380mmΦ960-1860mmΦ1155-2200mm
    Capacity250-350kg/h700-900kg/h1000-1200kg/h1350kg/h
    Installed power160kw480kw580kw650kw
    Length26m36m45m45m

    Production Line Composition Table


    No

    Name

    Qua.

    1

    Automatic vacuum feeder

    1unit

    2

    High efficiency hopper dryer

    1unit

    3

    High efficiency single screw extruder

    1unit

    4

    Mold 110-2200mm

    1set

    5

    Vacuum calibration box

    1unit

    6

    Cooling calibration box

    1unit

    6

    Hauling machine

    1unit

    7

    Planetary cutter

    1unit

    8

    PLC Computer control system

    1set

    9

    Pipe bracket

    1set


    Detailed Photos

    High-Performance 110-500 Pre-Insulated HDPE PE Pipe Extrusion Line 1

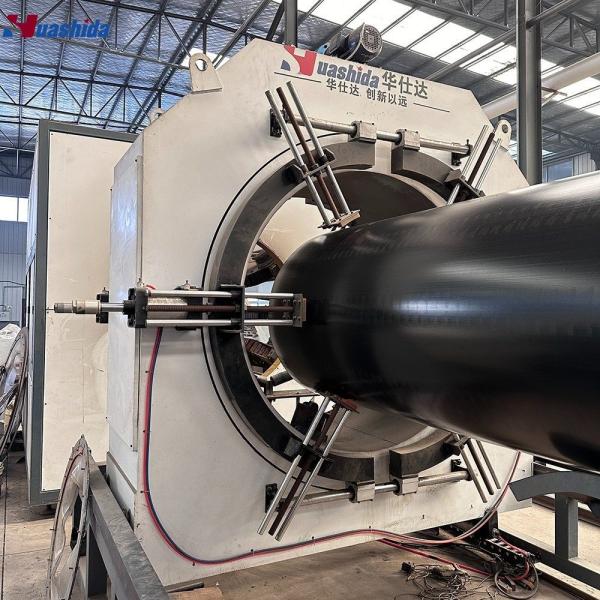

    PE-960/1860

    HDPE Plastic Jacket Pipe Pre-Insulated Pipe Casing Extrusion Line

    Our Advantages

    High-Speed & High-Efficiency:

    ♥Provides large output with stable performance.

    No Trimming Needed :
    One-step forming ensures smooth, burr-free pipes, zero post-processing waste.

    Uniform Wall Thickness:

    ♥Adjustable die-head bolts allow precise thickness control for different applications.


    High Automation & Rduce Cost :

    ♥The high degree of automation reduces labor costs and improves production efficiency.

    Energy Saver:
    ♥Barrier screw design cuts energy use by compared to conventional extruders.

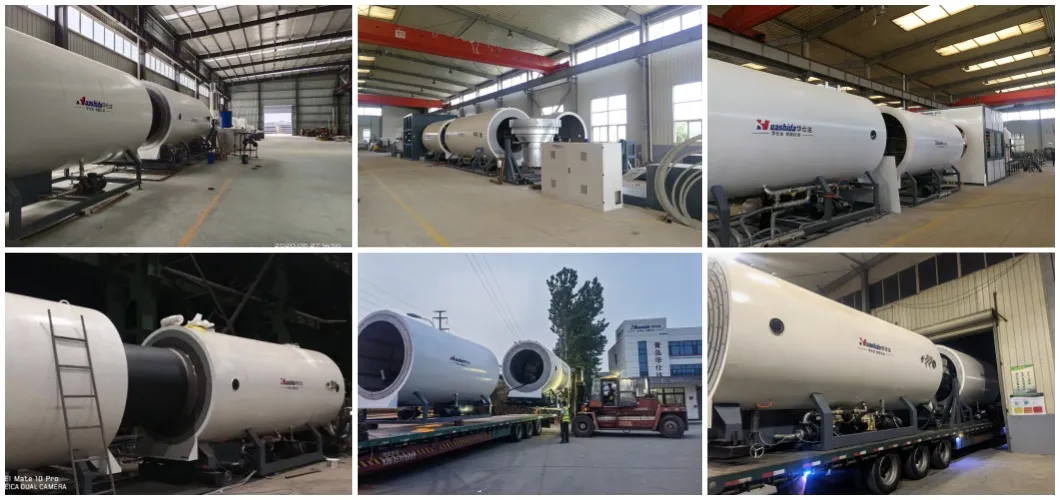

    Factory overview
    High-Performance 110-500 Pre-Insulated HDPE PE Pipe Extrusion Line 3

    Exhibition
    High-Performance 110-500 Pre-Insulated HDPE PE Pipe Extrusion Line 6
