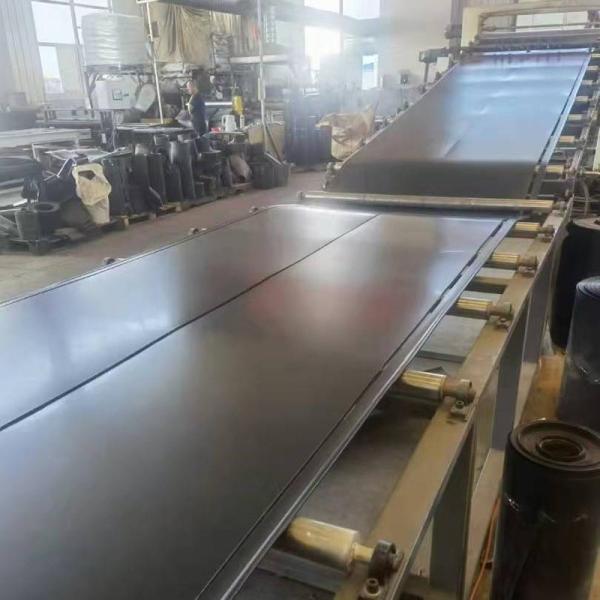

20- Year Professional HDPE, PE, PVC, Geomembrane Waterproof Liner
Sheet Extrusion Line
It consists of SBJZ-series plate &sheet special-purpose single
screw extruder SJZ-series conical twin screw extruder Or SJ-series
parallel twin screw extruder; Equipped with auxiliary downstream
accessories and moulds, it can produce: PP, PE and other board &
sheet.The machinery unit consists of extruder, Screen changing device,
melt pump, T-die, 3-rollr or multiple-roller calender, cooling
device, edge cutter, Haul-off system, plate cutter winder,
electrical control system.Others, The working principle is the 3 states of the hot-plastics
at different temperatures: The pushing force of the screw change
the physical stat from glass state to high elastic state, then
glutinous-and-fluid sate, it comes out from the slim gap of the
die, the rest of the procedures are calendar, cooling-shaper,
edge-cutter, Haul-off, cutter, winder.Features of the machinery unit: High grade alloy structural steel (
38CRMOALA) made material barrel& screw and mould, after nitriding
treatment. It gets high hardness, corruption and long service life.
Choice T-die the flowing passage is designed for easy flowing of
thehout any detaining, and the product thickness is even, For the
calender, large conical slot is designed, the cooling quality
inside the roller is good, and the temperature synchronization,
The plate and sheet extrusion line is specifically designed for
producing high-quality boards and sheets from materials like PP
(Polypropylene) and PE (Polyethylene). It features advanced
components, including the SBJZ-Series Single Screw Extruder for
specialized applications, the SJZ-Series Conical Twin Screw
Extruder for enhanced plasticization and mixing, and the SJ-Series
Parallel Twin Screw Extruder for consistent output and processing
capability.
This versatile line can process a variety of materials and includes
auxiliary accessories for cooling, stretching, and cutting, along
with custom moulds tailored to specific dimensions. It is ideal for
applications in packaging, construction, automotive parts, and
consumer products. Overall, this extrusion line offers an efficient
solution for producing high-quality plates and sheets across
diverse industries.
| (Modle) | (width) | Thickness(MM) | Seedtm/min) | Outputr(kg/h) |
| SBJZ-800 | 650 | 0.18-1.5 | 1-25 | 80-320 |
| SBJZ -1000 | 800 | 0.2-2.0 | 1-20 | 150-430 |
| SBJZ -1500 | 1350 | 1-10 | 0.5-10 | 150-450 |
| SBJZ -2000 | 1850 | 2-15 | 0.5-8 | 300-550 |
| SBJZ -2200 | 2000 | 1-10 | 0.4-3 | 420-820 |
| SBJZ -3000 | 2850 | 2-8 | 0.2-3 | 500-1200 |
| SBJZ -7000 | 6800 | 2-6 | 0.2-2 | 600-1560 |
