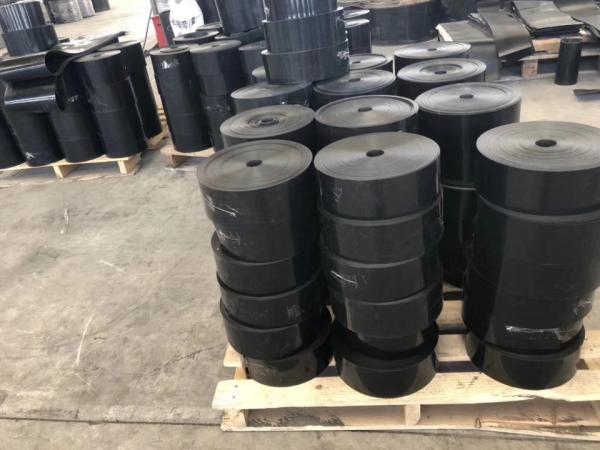

1. HSSC-1 Heat shrinkable sleeve (2 layers), which are developed and manufacture by Qingdao Huashida machinery Co., Ltd for anti-corrosion of pipeline, are the composition of radiation cross-linked polyethylene backing and high shearing strengthen melt adhesive, and have the function of shape memory. The hot melt adhesive is squeezed into the joint by the shrink power to form a perfectly sealed surface, after being heated. HSSC-1 is compatible with standard pipe coating, also can be used for coating bare, replacement pipe section and large radius bends. The system is designed to be applied with minimum preheating and is ideal for large diameter wastewater pipe

Application scope
The heat shrinkable sleeve is designed to be applied with minimum preheating and is ideal for large diameter wastewater pipe. 3PE pipe and pre-insulated pipeline joint closure.

Feature
1.Fast shrinkage speed,
2.good waterproof performance,
3 good anti-corrosive performance,
4.long service life, convenient transportation and fast construction.

2. 3Layer Fiber

reinforced PE heat shrinkable tape (sleeve) is composed of cross-linked polyethylene back, a middle layer of fiber and special heat melt adhesive an. The 3 layer reinforced sleeve gives better shrink ratio, and better strength. It is resistant to corrosion, wear, impact, UV and aging, easier to be operated.
Application area:
It is mainly used for Hollow wall spiral pipe, corrugated pipe and metal reinforced corrugated spiral pipe etc.

TEST PROCEDURE
1. Clean the steel pipe and heat it by fire till over 80 ºC
2. Paint the steel pipe with Primer (mixed with A&B)
3. Fire heat the heat shrink sleeve, be attention to start heating from middle of the sleeve, but act from up and down, and gradually move from middle to two sides of sleeve, in order to drive air out of the sleeve, after finish heating, the good result is that there is about 1-2mm hot adhesive melt at the edge of sleeve.

Heat shrinkable Sleeve construction
Before construction, scissors, flame spray gun, gas bottle, cleaning cloth, wire brush, protective gloves, shovel and other construction tools should be prepared.

The surface of the pipe was preheated to improve the adhesive adhesion and the peeling strength of the pipe. The part of the pipe to be welded was preheated with a flame spray gun at a temperature of 50℃-60℃.

After the pipe is preheated, move the shrink sleeve to the pipe interface to be welded. The shrink sleeve is centered at the center of the joint of the two pipes, and the margin on both sides is even.

Start heating, use the moderate flame of the flame spray gun to heat the heat shrinkable sleeve, first heat the middle part of the shrinkable sleeve, so that the middle part of the shrinkable sleeve around the tube, close to the pipe, when heating the gun mouth should leave the heat shrinkable sleeve 5-10 cm or so, prohibit the hot spray gun to scratch the shrinkable sleeve, and in the baking to swing evenly up and down. Melt the hot melt adhesive substrate evenly and shrink to tight.

After the middle part is tightened, the flame spray gun is gradually baked to both sides, the hand-held flame spray gun should swing back and forth, prohibit the flame of the spray gun mouth to stay in one place or continue to bake a certain part, which will cause the shrinkage sleeve to heat up sharply and carbonize to break, when baking on both sides, it can not be too urgent, from the inside out gradually to the outside, the middle can not have bubbles into the hanging part, Until the shrinkable sleeve is uniformly and tightly attached to the tube.

Huashida Machinery, with over 20 years' experience, is one of the professional oil gas 3pe pipeline girth welding coating heat shrink sleeve manufacturers in China. Offering the customized service, we warmly welcome you to get the high qualified products from our factory.
Looking forward to cooperating with you.

1. Our Factory

Qingdao Huashida Machinery Co., Ltd. is located in Qingdao High & New Technology Industrial Area- Qingdao Huashida industrial Park, covers an area of about 4000 square meters. We have tens of years experience in plastic pipe, sheet, and board extrusion lines, and pipe joints and welding tools such as heat shrinkable sleeve, Electro fusion sleeve etc.

2. Our main products

Our main products include as following,

HDPE PU pre-insulation Jacket Pipe extrusion line

3PE steel pipe anticorrosion&coating machinery

Rubber&plastic foam flexible insulation tube/sheet production line

HDPE water supplying pipe extrusion line

PE PP sheet board extrusion line

Heat shrinkable sleeve production line

Hollow wall spiral pipe production line

Plastic welding rod extrusion line

Radiation cross-linked PE heat shrinkable sleeve

Electro fusion tape

Portable extrusion welder

3. Our products Application.

Our machines make products what are widely used as jacket pipe of PU foam insulation pipe in municipal heating pipe system; Municipal water supplying and drainage pipeline; Oil and gas pipeline; Pipe joints of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;

Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;

4. Our certificates and Patents

5. Our Purpose and Market

Our purpose is to supply highest cost-effective products and the most suitable solutions to our clients, as well as intimate help and service, on this basis we reach a win-win situation.

For over 14years We have exported to many foreign countries, such as Russia, Iran, Turkey, U. A. E, Sudan, Ukraine, Uzbekistan, Azerbaijan, South Asia, Poland etc.

6. Guarantee and after service

The guarantee period is 12 months from the date of installing, but no more than 14 months from the date of delivery. After this period we are obliged to provide with lifelong service at the expense of Buyer.

During the warranty period we are responsible to provide trouble shootings and help the customer to solve the problems, provide spare parts which are broken, except breakings caused by the Buyer.

We will provide the technical service train the workers from the buyers for free.

We can also send technicians to the buyer's companies abroad for help installation and testing the lines. But the buyer shall pay for the round trip tickets, accommodation, transportation, medicine treatment and insurance of the technicians in foreign countries and some salary accordingly.
