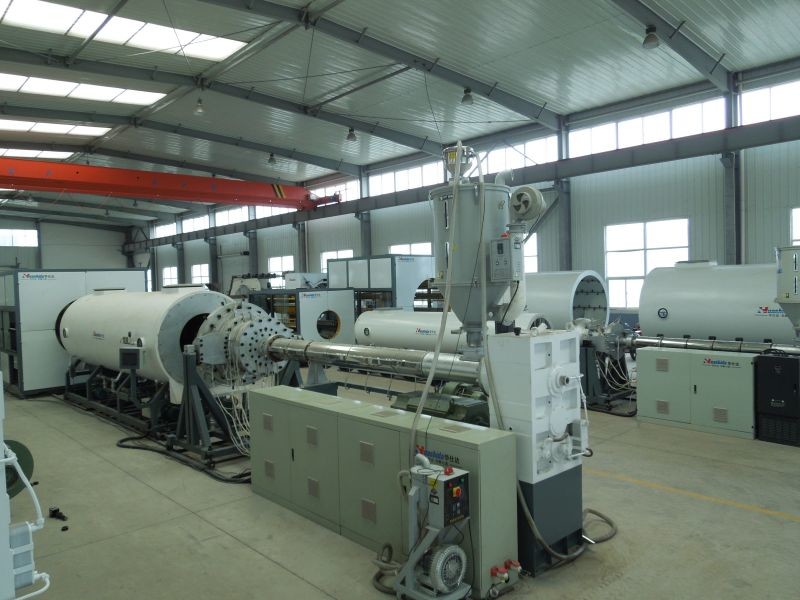

HDPE Jacket pipe extrusion line for pre-insulated pipe is designed by Qingdao Huashida Machinery Co., LTD. It absorbs and
improves developed HDPE pipe extruding technology.

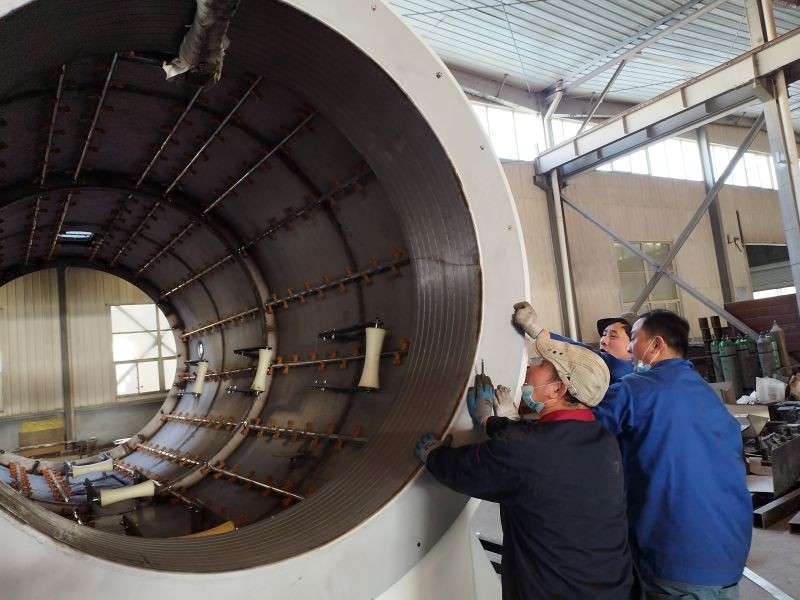

The production line is an integration design composed by extrusion,
vacuum calibrating, cooling, pulling, cutting, stacker. Great
performance in automatic operation, extrusion capacity, steady and
service life etc. Especially compared with the line use internal
pressure method, vacuum calibrating method is much better than it
for stiffness, pressure resistance and surface smooth.Vacuum
calibrating method pre-insulation pipe outside casing extruded line is the advanced and popular machinery in the world.
Technical Prameters:
| PE-365/760 | PE-420/960 | PE-850/1372 | PE-960/1680 |
| Main extruder | SJ-90/33 | SJ-90/33 | SJ-120/33 | SJ-150/33 |
| Pipe diameter (mm) | Φ365-960 | Φ420-960 | Φ850-1372 | Φ960-1680 |
| capacity (kg/h) | 550-700 | 550-700 | 700-900 | 800-1200 |
| Installed power (kw) | 360 | 380 | 440 | 580 |
| Length (m) | 35 | 36 | 40 | 48 |
Pipes insulated with polyurethane foam:
Pre-insulated pipe extrusion line designed by absorbing the tube
extrusion developed technology from German and improved by Qingdao
Huashida Machinery Co., Ltd.The line is an integration design
composed by extruder, vacuum calibrating, cooling, pulling,
cutting, stacker. Great performance in automatic operation,
extrusion capacity, steady and service life etc. Especially
compared with the line use internal pressure method, vacuum
calibrating method is much better than it for stiffness, pressure
resistance and surface smooth.
Piping PUF insulation and fittings is a rigid structure "pipe in
pipe" consisting of steel or galvanized steel carrier pipe, a layer
of polyurethane foam insulation and the outer jacket pipe
protective of high-density polyethylene - for underground
installation or sheet galvanized steel - for above-ground pad.
Rigidity due to the presence of strong ties between the steel pipe
layer polyurethane insulation and jacket pipe and provides pre-shot
blast or blast cleaning the surface of the steel pipe, optimum
performance polyurethane insulation, corona surface of polyethylene
pipe shell.
gas/oil /water pipeline Puf Pre-Insulated Pipe PE shell casing
plastic Machinery Advantages:
Significantly increases the reliability of the pipeline in the PUF
insulation system operational availability of remote condition
monitoring PUF insulation, which allows to detect and repair
leaking coolant, preventing accidents typical for thermal networks
of other designs.
Highly cost-effective use of pipelines in the foam insulation
define the following parameters:
Simplifying the construction, maintenance and repair;
Increased service life of 30-40 years (traditional types of
pipelines - 5-10 years);
Reduction of heat losses to 8% (traditional types of pipelines -
30-40%);
Reducing capital costs by 15-20% (not required construction of
concrete channels and chambers for valves);
Reduced operating costs by 9 times;
Reduction in repair costs 3 times.
