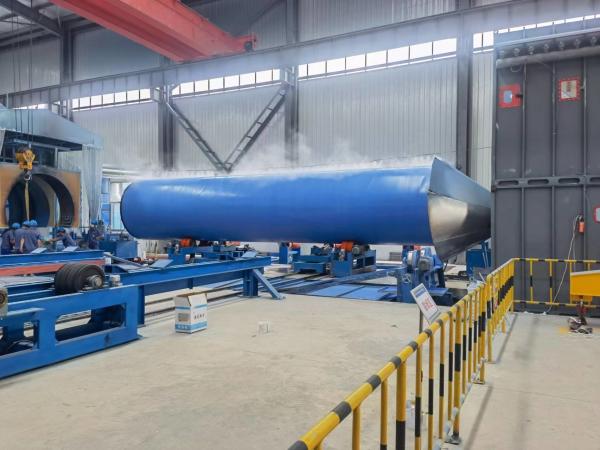

3LPE /FBE pipe blasting/ coating/ PE film extrusion assembly production line

production range	processing capacity	Cleaning class	used material
159mm-1600mm	159mm-1600mm	Sa2.5	FBE powder, binder, polyethylene

Description:
Pipeline three-layer PE anti-corrosion structure: the first layer of epoxy powder (FBE > 100um), the second layer of adhesive (AD)170 ~ 250um, the third layer of polyethylene (PE)2.5 ~ 3.7mm. The three materials are integrated and firmly combined with the steel pipe to form an excellent anti-corrosion layer.
Pipe diameter range Φ159 ~ Φ1220 2PE anticorrosion: Pipe two-layer PE anticorrosion structure, the first layer of adhesive (AD), the second layer of polyethylene (PE), the two materials are integrated, the thickness of each layer is the same as that of three-layer PE.

Steel pipe conveyor system

The electrostatic spraying system is configured on the inner spray line of the production line to avoid the inner coating pinholes caused by the discharge of the spray gun.
The dust removal system configured in the production line can simultaneously take into account each point that the powder overflow needs to be controlled, which is environmentally clean.
The intermediate frequency heating system configured in the production line has the function of automatic temperature feedback adjustment, the electrostatic gun has the electrostatic generating device, and the spray gun is the product designed by our company.

Application:
3PE anticorrosive steel pipe is suitable for coal mine underground water supply and drainage, underground grouting, positive and negative pressure ventilation, gas extraction, fire sprinkling and other pipe networks. Thermal power plant process water waste residue, return water transmission pipeline. It has excellent applicability to the water supply pipeline of the anti-spray and sprinkler system. Electric power, communication, highway and other cable protection sleeve. It is suitable for high-rise building water supply, heat supply network heating, tap water engineering, gas transmission, buried water transmission and other pipelines. Oil transmission pipeline, chemical and pharmaceutical, printing and dyeing industries to transport corrosive media process pipeline. Sewage treatment discharge pipe, sewage pipe and biological tank anticorrosion engineering. Agricultural irrigation pipe, deep well pipe, drainage pipe and other network applications



Intelligent steel pipe inside and outside epoxy anticorrosive production line, no waste water, waste gas, smoke emissions, no vibration, low noise in the production process, can make the downstream anticorrosive steel pipe manufacturing enterprises to achieve speed and efficiency, energy saving and emission reduction effect, and then provide long-term anticorrosive protection for the transportation of water, oil, gas and other important media of the steel pipe, extend the service life, reduce maintenance costs, Ensuring the security of national strategic resources and economic development has significant social and environmental benefits.





Customers are mainly distributed in Shandong, Henan, Hebei, Jiangsu, Anhui and other places, in Heilongjiang, Xinjiang, Inner Mongolia, Gansu and other provinces have also established sales channels, the future will expand business for the whole country. In the international market, take an active going out strategy, actively participate in the international famous large-scale plastic machinery exhibition, has been to Russia, Kazakhstan, Iran, Jordan, India, Turkey, Saudi Arabia and other countries to exhibit the company's products. At the same time, actively respond to the national call, integrate into the "Belt and Road" development plan, and make the company's products go to the countries and regions along the "Belt and Road".
