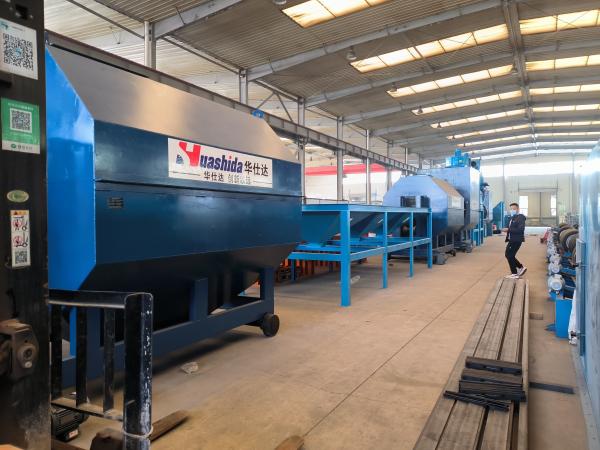

3LPE /FBE pipe blasting/ coating/ PE film extrusion assembly
production line| production range | processing capacity | Cleaning class | used material
|
| 159mm-1600mm | 159mm-1600mm | Sa2.5 | FBE powder, binder, polyethylene |
Description:Pipeline three-layer PE anti-corrosion structure: the first layer
of epoxy powder (FBE > 100um), the second layer of adhesive
(AD)170 ~ 250um, the third layer of polyethylene (PE)2.5 ~ 3.7mm.
The three materials are integrated and firmly combined with the
steel pipe to form an excellent anti-corrosion layer.
Pipe diameter range Φ159 ~ Φ1220 2PE anticorrosion: Pipe two-layer
PE anticorrosion structure, the first layer of adhesive (AD), the
second layer of polyethylene (PE), the two materials are
integrated, the thickness of each layer is the same as that of
three-layer PE.
Steel pipe conveyor system
1. Automatic conveyor adjustment as per pipe size controlled
2. Siemens PLC central control computer
3. Interactive human-computer interface screen
4. Customization according to user special require
5. Unified adjustment of opening and closing, unified adjustment of
angle.
6. Each set of wheels is driven by independent power to expand the
spiral angle of the conveyor, and the transmission angle can reach
30degrees.The transmission speed is adjustable from 0-6 meters.Adopt solid wide-surface tires, a single wheel with a load capacity
of 2.5 tons,press-fit tires,no degumming, no cracking. The thickness of the glue layer is
greater than 85 mm, the transmission is stable and reliable,and the safety guarantee for the long-term operation of the equipment.
Application:
3LPE /FBE pipe blasting/ coating/ PE film extrusion assembly
production line. The three-layer PE process, with the epoxy powder
coating as bottom layer, binding and bundling through polyethylene
PE and adhesive, is widely used in anticorrosion of steel pipes at
home and abroad, and applied to the oil pipeline and gas pipeline,
as well as to the gas supply and water supply for civil use.
Technological processes:
Upload pipes→pipes screw conveyor→rust removal of intermediate
frequency heating→Epoxy powder coating→outer layer soli quid &
polyethylene coating→cooling spray→pipes screw conveyor→grinding
pipes, send→unload pipes
Question & Answer:
Q1. What is Size of Pipe Dia. your equipment can produce ?
A: We can produce four main Model:
Diameter of steel Pipe:
48-219mm.
219-1220 - mm
800-1600 - mm
1000-2400 - mm
Q2. What is Descaling grade?
A:SA2.5?
Q3. What is your anticorrosion coating standard?
A: It can meet SY/T0413-2002 ,GB/T23257-2009, German DIN 30670 ,
DIN 30678 and coating specification requirements from American
Corrosion Association, and DNV . The product pipe fully complies
with SY/T0315-2005 ,CNPC38-2002 "Technical specifications for
double-layer fusion-bonded epoxy powder coating on buried steel
pipe and Canada, American Corrosion Association standards.
Q4. What is Delivery Time
A: 2-3monthes after deposit.
Q5. Production output:
A: It is different output capability as different pipe diameter,
the Max. is 3 to 8 km/day, and annual processing capacity is 2
million square meters (Φ508 mm).
Q6. Coating thickness:
A: 80~800um
Q7. Which country did you sell your 3PE equipment?
A. We have produced nearly 50sets 3PE processing line at home and
abroad. Such as Russia, Iran, UAE, Iran, India, Belarus, Kazakhstan
and so on.
Q8. After-sales service:
A: Warranty period:
Before delivery all the equipment must be trial operated to confirm
the quantity perfectly.
The warranty period is 12 months from the date of pick-up for
mechanical part , and 6 months for the electrical part.
Service:
The seller provides free technical services and provides training
and guidance to buyer operators.
Qingdao Huashida sand blasting and rust removal production line to
provide customers with customized services
Huashida can also according to the diameter of the steel pipe
processed by customers, the equipment adopts one-time sand, the
steel sand can be automatically recycled, and the amount of sand is
adjusted to make it reasonable distribution, which not only greatly
improves the production efficiency, but also saves a lot of labor
costs.
Huashida provides the most advanced technology and equipment in the
industry, which has been well received in the rust removal and
corrosion prevention industry. In particular, they vigorously
launched the multi-tube rust removal machine to the market, which
is suitable for multi-tube comprehensive rust removal operations of
various caliber steel pipes, with long service time, high
efficiency, saving the amount of steel sand, and can achieve better
rust removal effect.
